ACE molding machine

It is a type of molding machine with air flow to add the sand into the sand filling frame and flask, the molding machine squeezes the sand with the segment squeeze plate and the pattern plate. The casting which are made from ACE machine are high quality, extra-precision and low cost, therefore the SEIATZU molding is one of the most popular molding process from the green sand field.

Characteristic| Modeling Process | Molding Line

• Molds of excellent quality

ACE is capable to produce thinner and lighter castings by minimizing the pattern draft. on account of its superior quality of mold with a uniform density and a high strength,as well as of
its fine mod strippng property.

• Energy saving

Energy consumption is reduced for 63% in co2 equivalent. Greatly contributing to the curailment of running cost.

• Reduction of spill sand

Spill sand during sand fillingis literally "O". The volume of sand required for filling a mold is preciselycontrolled by "feed back" system so that the sand scraped off from mold back face by sand cutter is drastically reduced.

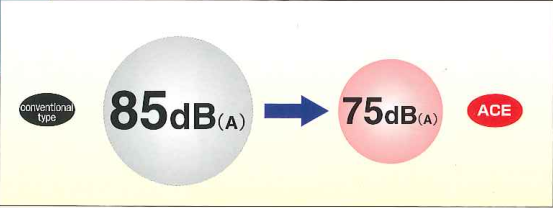

• Low noise

Actualized 75dB(A) in equivalent noise level.
Comfortable working environment without vibration.

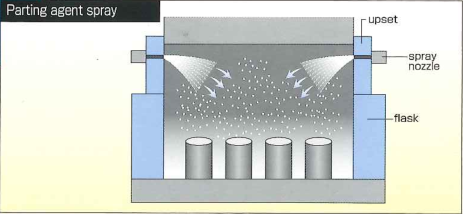

• Splashing of parting agent is prevented

As the parting agent spray is performed

inside the sealed molding flask, there is no splashing of parting agent.

The consumption is reduced to 1/2.

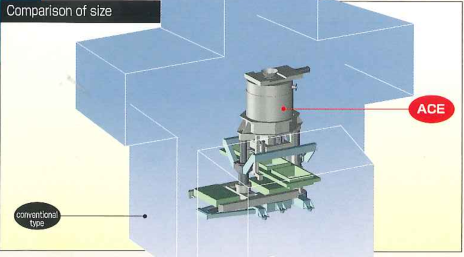

• Compact size

The size of ACE is so compact. It requires no pit.

ACE is applicable to the replacement needs for most of existing molding machines.

Modeling Process

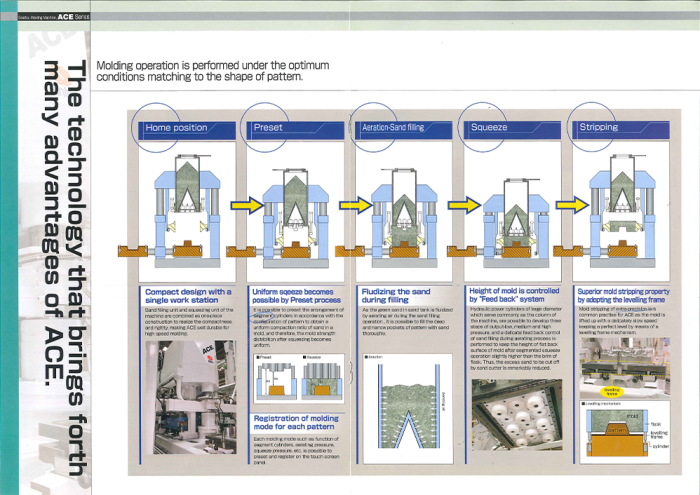

• ACE Static pressure molding machine modeling process

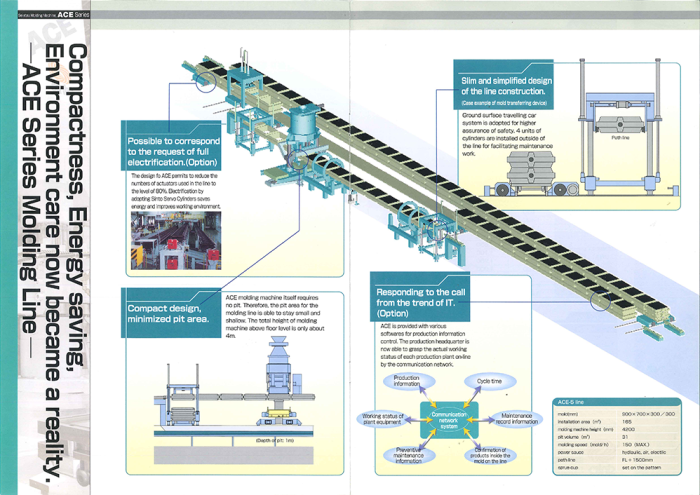

Molding Line

• The utility model has the advantages of small occupation area, energy saving and favorable environment protection
